Description

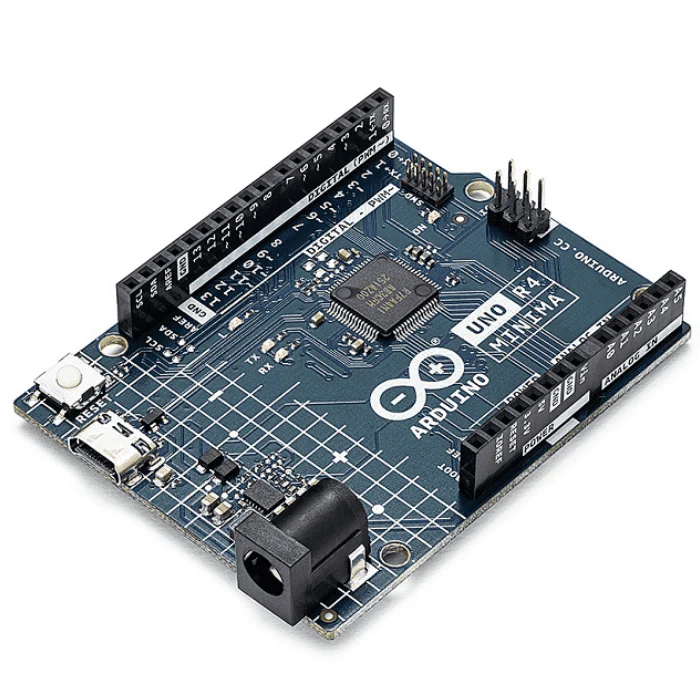

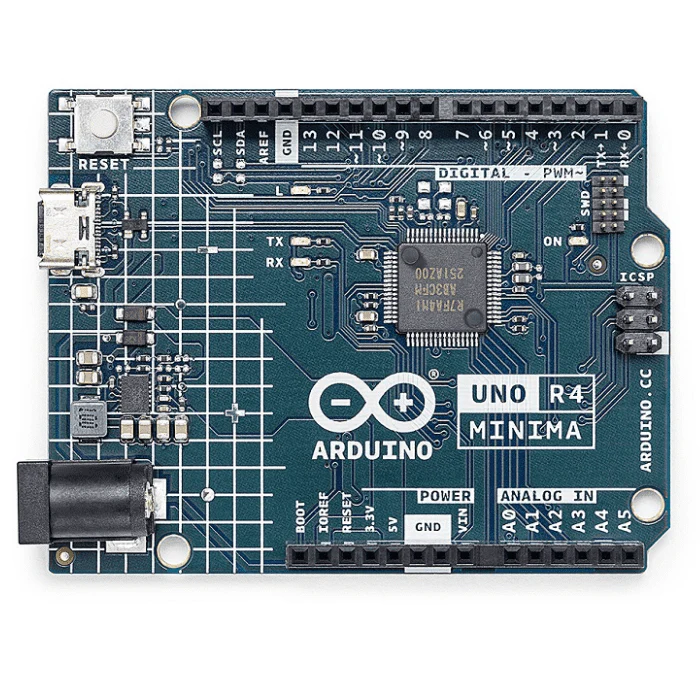

The Arduino UNO R4 Minima features a 32-bit RA4M1 microcontroller with a 48 MHz Arm Cortex-M4 processor, offering expanded memory (256 kB Flash, 32 kB SRAM). Compatible with existing UNO accessories, it supports 6-24 V input and has enhanced features like capacitive touch sensing, 14 digital I/O pins, and advanced ADC/DAC capabilities. Perfect for innovative projects and seamless upgrades.
Features:
- 32-bit development board, previously based on 8-bit AVR
- Standard 14 digital I/O ports, 6 analog channels, and dedicated pins for I²C, SPI, and UART connections
- Larger memory: 8 times more flash memory (256 kB) and 16 times more SRAM (32 kB)
- Easy power management: Barrel jack connector supports input voltages from 6-24 V, eliminating the need for additional circuitry
- Cross-compatibility: UNO form factor makes it compatible with existing third-party shields and accessories
Package Includes:
- 1 x Arduino UNO R4 Minima
| Category | Details |
|---|---|
| Memory | 256 kB Flash Memory, 32 kB SRAM, 8 kB EEPROM |
| Pins | 14x Digital (GPIO, D0-D13), 6x Analog Input (ADC, A0-A5), 6x PWM (D3, D5, D6, D9, D10, D11) |
| Peripherals | Capacitive Touch Sensing Unit (CTSU), USB 2.0 Full-Speed Module (USBFS), up to 14-bit ADC, up to 12-bit DAC, Operational Amplifier (OPAMP) |
| Power | Input Voltage (VIN): 6-24 V, Operating Voltage: 5 V, Barrel Jack to VIN, USB-C® Power (5 V), Schottky Diodes for Overvoltage/Reverse Polarity Protection |
| Communication | 1x UART (D0, D1), 1x SPI (D10-D13, ICSP header), 1x I²C (A4, A5, SDA, SCL), 1x CAN (D4, D5, external transceiver required) |
