Description

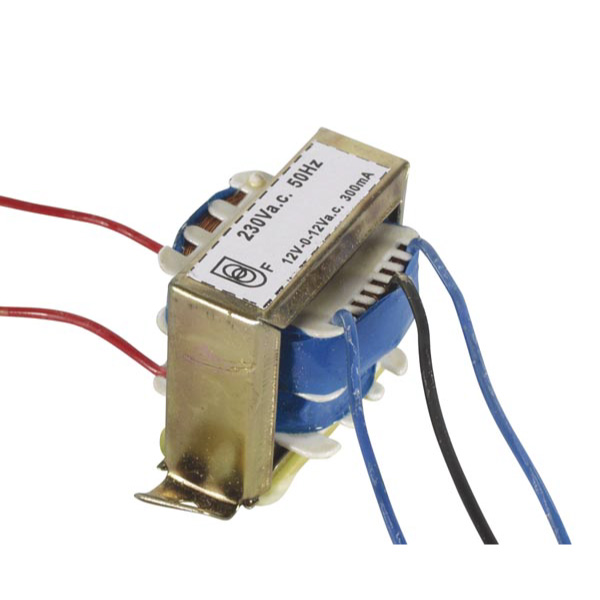

12-0-12 Centre Tap transformer has 240 primary windings and centre tap secondary winding. It acts as a step-down transformer and reduces AC 240V to AC-12V. It can give output of 24v, 12V and 0V. A transformer transfers energy on the principle of mutual induction, by inductive coupling between its windings and it’s a static device. Its core is made up of high permeability silicon steel. steel has a permeability many times compared to free space and it serves to reduce magnetizing current greatly and confine the flux to a path which couples the windings.
Applications
- Rectifier circuits
- AC-AC step down
- Full wave rectifiers
Specification
- Input Voltage: 230V AC at 50Hz
- Output Voltage: 24V, 12V or 0V
- Output Current: 0.5 amp
- Vertical mount type
- Low cost and small package
